PROLINK PRO701SFC LINE INTERACTIVE UPS (2y)

Capacity

650VA

Dimension (mm)

286 x 96 x 138 (D x W x H)

Weight (kg)

4.3

Voltage Range

162 ~ 290VAC (Single boost)

140 ~ 300VAC (Double boost)

Frequency

50Hz/60Hz (Auto-sensing)

Phase

Single + GND

Voltage Range

220-240VAC

Battery Mode

220-240VAC

Frequency

50Hz ±1% (Battery mode)

Waveform

Simulated sine wave (Battery mode)

Sine wave (AC mode)

Transfer Time

2ms typical

Type

12V/8.2AH x 1

Backup Time

8 – 20 mins depending on load

Recharge Time

2-4 hours recover to 90% capacity

Interface

RS232, USB port, RJ45/RJ11 (Optional)

Display

LED/LCD Optional

Alarm

Batt. Mode, low battery, overload, fault, etc.

Short Circuit Protection

Yes (Line mode & battery mode)

Surge Protection

Yes

Alarm

Audible & Visual

Overload Protection

Line mode : 100 – 120% 1 min change to fault mode
>120% change to fault mode immediately Battery mode : 100 – 120% 1 min change to fault mode
>120% change to fault mode immediately

Intelligent Battery

Prevent overcharging of battery

Management

Protect battery and prolong battery life

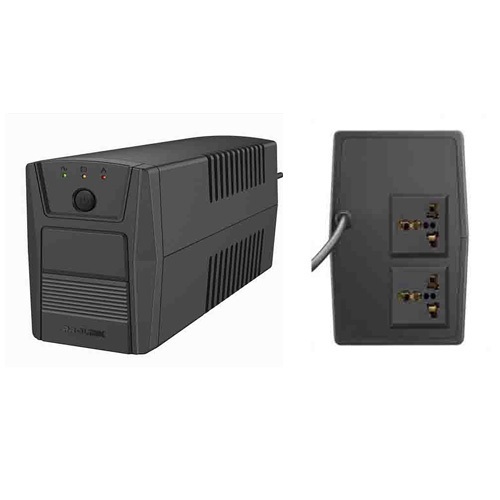

1. AC Mode Indicator

Green LED Lighting

2. Battery Mode Indicator

Battery Normal : Yellow LED Lighting and Blinking every 30s
Battery Low : Yellow LED Lighting and Blinking every 2s

3. Overload and Fault Indicator

Overload : Red LED Blinking every 2s
Fault : Red LED Lighting

4. Power Switch

5. Power AC Input

6. Backup Outlets
